CoR Skirt S 2-Way External Corner
CoR Skirt S 2-Way External Corner: Preformed 2-way external corner that carries CoR Skirt S sanitary base around outside corners with flexible sealing lips and no field-cutting.
Packing: 50 pcs/box
Colors: Pure White 9010, Sand White 9002.
Food safe Material
Easy Installation
-4°F to 140°F
Self-Extinguishing
Full Description
The CoR Skirt S 2-Way External Corner is a preformed 2-way external corner that carries CoR Skirt S sanitary base around convex angles at the floor-to-wall juncture. Two flexible sealing lips close each leg of the joint, therefore installers skip the miter and the filler. Panelmart stocks the part for walk-in coolers, food processing plants, commercial kitchens and cleanrooms across the United States.
By The Panelmart Engineering Team | Fact-Checked & Updated: September 2026
What Is the CoR Skirt S 2-Way External Corner?
It is a molded corner piece for the CoR Skirt S sanitary base. The part covers the outside corner, the convex angle that projects into the room: a column edge, a wall return, a service chase. Like the other sanitary cove base accessories in the CoRound Seal line, it arrives molded to the exact profile of the base. As a result, the run turns the angle as one continuous surface.
Why Use a Preformed Corner Instead of Field-Cutting?
A cove base outside corner takes the hardest duty in a washdown room. Cut two runs on site and a V-shaped seam remains, which only silicone can fill. Silicone then shrinks, cracks and darkens. However, a preformed cove base outside corner removes that seam and holds the radius constant on both legs. Furthermore, it saves labor: installers fit it in seconds instead of cutting a careful miter. See our analysis of cutting and installation labor costs.

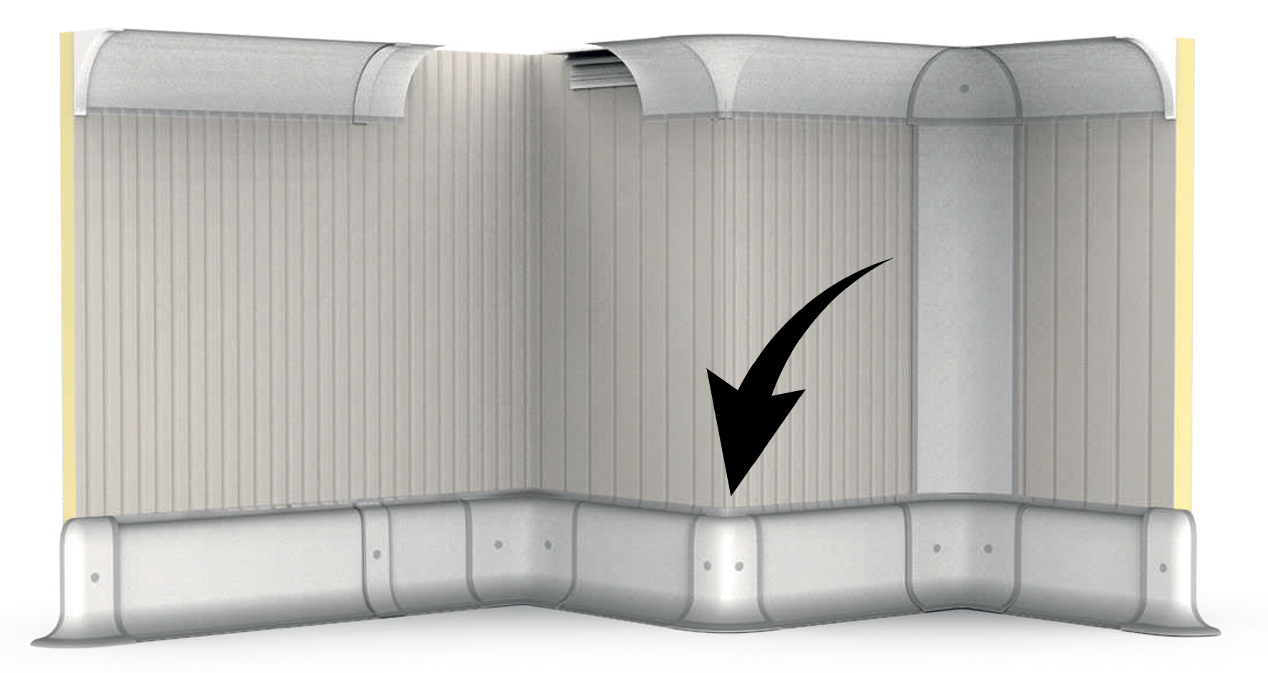

Where Does the 2-Way External Corner Install?
The piece suits any point where CoR Skirt S turns an outward angle at floor level. Specifically, customers install it in:
- Walk-in coolers and freezers, at door returns and evaporator platforms
- Food processing rooms, around column bases and equipment plinths
- Commercial kitchens, along wall returns and dish-room partitions
- Cleanrooms and pharmaceutical suites, where chases project into the space
Every position asks the same job of the part: close the floor-to-wall juncture and leave a smooth radius that a crew cleans in one pass. In addition, USDA FSIS sanitation performance standards and Texas Food Establishment Rules §228.173 both call for tightly closed junctures. Our guide explains what the federal rule asks of coved junctures.
How Do Installers Fit the 2-Way External Corner?
First, the crew runs CoR Skirt S up to the angle on both walls and trims each length flush. Next, they press the 2-way external corner over the angle until it snaps home. The brochure confirms that the piece needs no silicone to seat. In high-moisture rooms, however, Panelmart recommends a thin bead of neutral food-grade silicone at the floor joint only. Finally, the snap-on cover strip closes over the fixings.
Order the CoR Skirt S 2-Way External Corner
Panelmart ships the 2-way external corner from Miami in boxes of 50, in Pure White 9010 and Sand White 9002, together with the matching internal piece for concave angles and the rest of the sanitary cove base accessories for the line. Browse the full CoRound Seal system or the wider sanitary PVC profile range. Call +1 786 917 8106, email sales@panelmart.com, or contact Panelmart today.
Why Choose This Profile
Coround hygienic profiles are designed for environments where cleanliness, temperature control, and structural integrity are essential. Our profiles create seamless, inspection-ready transitions that meet the highest industry standards.
Hygienic Design
Smooth, non-porous surface prevents bacteria buildup and simplifies cleaning protocols
Temperature Resistant
Maintains integrity from -4°F to 140°F, perfect for cold storage and processing areas
Waterproof Seal
Creates a continuous watertight junction that prevents moisture infiltration
Easy Installation
Flexible PVC material allows quick fitting to panels with standard adhesives
Long Lifespan
UV-stabilized material resists yellowing and degradation for 15+ years
Inspection Ready
Clean lines and seamless transitions help facilities pass hygiene audits
Technical Specs
Coround hygienic profiles are designed for environments where cleanliness, temperature control, and structural integrity are essential. Our profiles create seamless, inspection-ready transitions that meet the highest industry standards.
| Material | Rigid PVC (food-grade quality) |

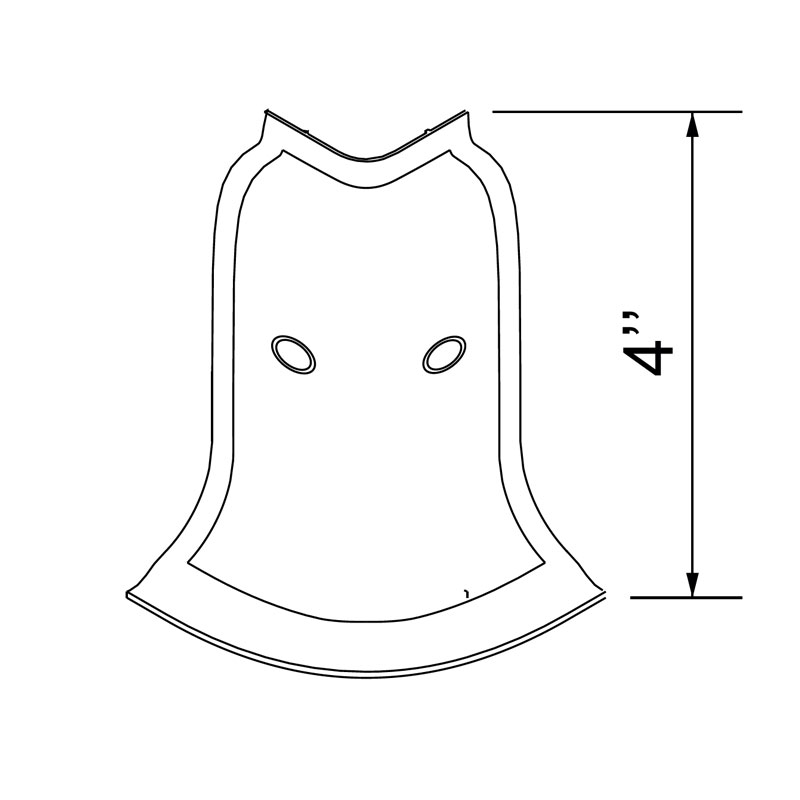

| Profile Height | 4″ |
| Packing | 50 pcs/box | Fire Classification | V0 (UL 94) |
| Temperature Range | -20°C to +60°C (-4°F to 140°F) |
| Color Options | Pure White 9010, Sand White 9002 |
| Chemical Resistance | Resistant to common cleaning agents and disinfectants, acid resistant |
Applications
Coround hygienic profiles are designed for environments where cleanliness, temperature control, and structural integrity are essential. Our profiles create seamless, inspection-ready transitions that meet the highest industry standards.
Cold Storage
Our profiles maintain seal integrity across freeze-thaw cycles.
✓ Walk-in coolers
✓ Freezers
✓ Refrigerated warehouses
Food Processing
Smooth surfaces enable thorough sanitation and prevent contamination.
✓ Meat
✓ Dairy
✓ Bakery
✓ Beverage production
Pharmaceutical
Seamless corners eliminate particle accumulation points.
✓ Cleanrooms
✓ Laboratories
✓ Ccontrolled environments
Commercial Kitchens
Easy-to-clean surfaces withstand frequent wash-downs and high-traffic use.
✓ Restaurants
✓ Commissaries
✓ Food service
Installation Positions
Wall-to-Floor Hygienic Transition
Downloads
Access technical documentation, installation guides, and specifications.
Product Catalog
Complete specifications, dimensions, and material properties.
Installation Guide
Step-by-step instructions for proper profile installation.
Frequently Asked Questions
What exactly are sanitary PVC profiles?
Sanitary PVC profiles — also known as sanitary PVC cove base or PVC cove base systems — are specially shaped rigid PVC elements designed to create smooth, curved transitions between floors, walls, and ceilings in environments that require extreme cleanliness.
Unlike sharp 90-degree corners where dirt, bacteria, and moisture can accumulate, these profiles feature a rounded radius that eliminates hiding spots for contaminants.
The CoRound system, for example, uses food-safe PVC that is chemical-resistant and temperature-stable, making it ideal for cold storage facilities, food processing plants, cleanrooms, and pharmaceutical environments.
Why not just use traditional silicone sealant for corner junctions?
Traditional silicone sealants often crack, discolor, or develop mold over time, requiring frequent maintenance and replacement — which increases costs and downtime.
In contrast, hermetic PVC cove base systems like CoRound Seal feature integrated flexible sealing lips that adapt perfectly to insulated panels or drywall with minimal need of silicone or additional sealants.
This minimal sealant installation creates a permanent, gap-free barrier that prevents infiltration of moisture, dirt, and bacteria while dramatically simplifying daily cleaning and ensuring long-term HACCP compliance.
In which environments are sanitary PVC cove base profiles mandatory or strongly recommended?
Sanitary PVC cove base is essential anywhere strict hygiene standards apply, including food processing plants, commercial kitchens, cold rooms, walk-in freezers, pharmaceutical cleanrooms, hospitals, and laboratories. Regulatory bodies often require HACCP-compliant or FDA-compliant solutions to prevent contamination risks.
These sanitary PVC cove base profiles are particularly recommended for facilities using insulated metal panels, as they maintain thermal integrity, prevent cold bridges, and support easy high-pressure wash-downs.
Do sanitary PVC cove base profiles withstand the extreme temperatures of cold rooms and freezers?
Yes — high-quality food-safe PVC cove base is engineered to perform reliably from -4° F to +140°F (-20°C to +60°C). It resists cracking in freezing conditions, deformation in heat, and degradation from aggressive sanitizers.
This durability makes hermetic PVC cove base the preferred choice for cold storage facilities and food processing environments where temperature fluctuations and daily wash-downs are routine.
Are sanitary PVC cove base profiles truly cleaner than alternative solutions?
Absolutely.
Traditional corners and silicone joints create microscopic gaps that harbor bacteria and mold.
HACCP-compliant PVC cove base eliminates these gaps entirely, providing a fully smooth, non-porous surface that is easy to sanitize and prevents microbial contamination. Certified food-safe and chemical-resistant, these profiles meet the strictest international hygiene standards and are widely preferred.
What’s the difference between a standard baseboard and a sanitary profile like CoR Skirt?
A conventional baseboard is mainly decorative and leaves small gaps where dirt and water can enter.
The CoR Skirt sanitary base is a purpose-designed sanitary PVC base with an integrated upper lip that completely hides fixings and a lower flexible sealing lip that presses against the wall or floor for a perfect hermetic seal.
This creates a seamless, easy-to-clean transition that prevents contamination and is specifically engineered for food-safe and cleanroom applications.
How do these profiles achieve a hermetic seal with minimal sealant use?
The secret lies in the innovative design: sanitary PVC cove base profiles like CoR 4 incorporate soft, flexible sealing lips along the edges.
When installed, these lips compress gently against the surface — even irregular insulated panels — creating an automatic, airtight and watertight seal.
Minimal additional sealant is needed, resulting in faster installation, lower labor costs, and a completely smooth, non-porous surface that resists bacterial growth and chemical cleaning agents.
Is installation complicated? Do I need a specialized technician?
Installation of sanitary PVC cove base systems is actually much simpler and faster than traditional silicone methods.
Profiles like CoR 4 are placed onto a pre-drilled support (CoR Base), fixed with hidden screws, and completed with snap-in accessories (corners, joints, end caps).
Most installers of insulated panels or drywall can complete the job quickly without specialist training, saving significant time and money compared to messy sealant applications.
Do I need to purchase special accessory pieces for corners and junctions?
Yes, and that’s one of the strengths of a complete system like CoRound.
In addition to the main sanitary PVC cove base profiles, you’ll use dedicated accessories — such as 2-way and 3-way internal/external corners, straight joints, end caps, and termination profiles — all featuring the same flexible sealing lips.
This ensures every transition remains perfectly hermetic and seamless, eliminating any weak points in high-hygiene installations.
How long do sanitary PVC cove base profiles last, and what are the long-term maintenance costs?
Premium sanitary PVC cove base profiles are built to last decades without degradation, thanks to their robust, UV-stable, and chemical-resistant PVC construction.
Maintenance is virtually zero: just routine cleaning with standard detergents. While the initial investment may be slightly higher than basic silicone, the savings in labor, downtime, and replacement costs quickly outweigh it, delivering excellent ROI for cold storage, food processing, and cleanroom facilities.
